Description
High-Performance Insulation & Safety:
- UL94 V-0 Fire Rating: Certified self-extinguishing performance with no flaming droplets—ensuring maximum safety.

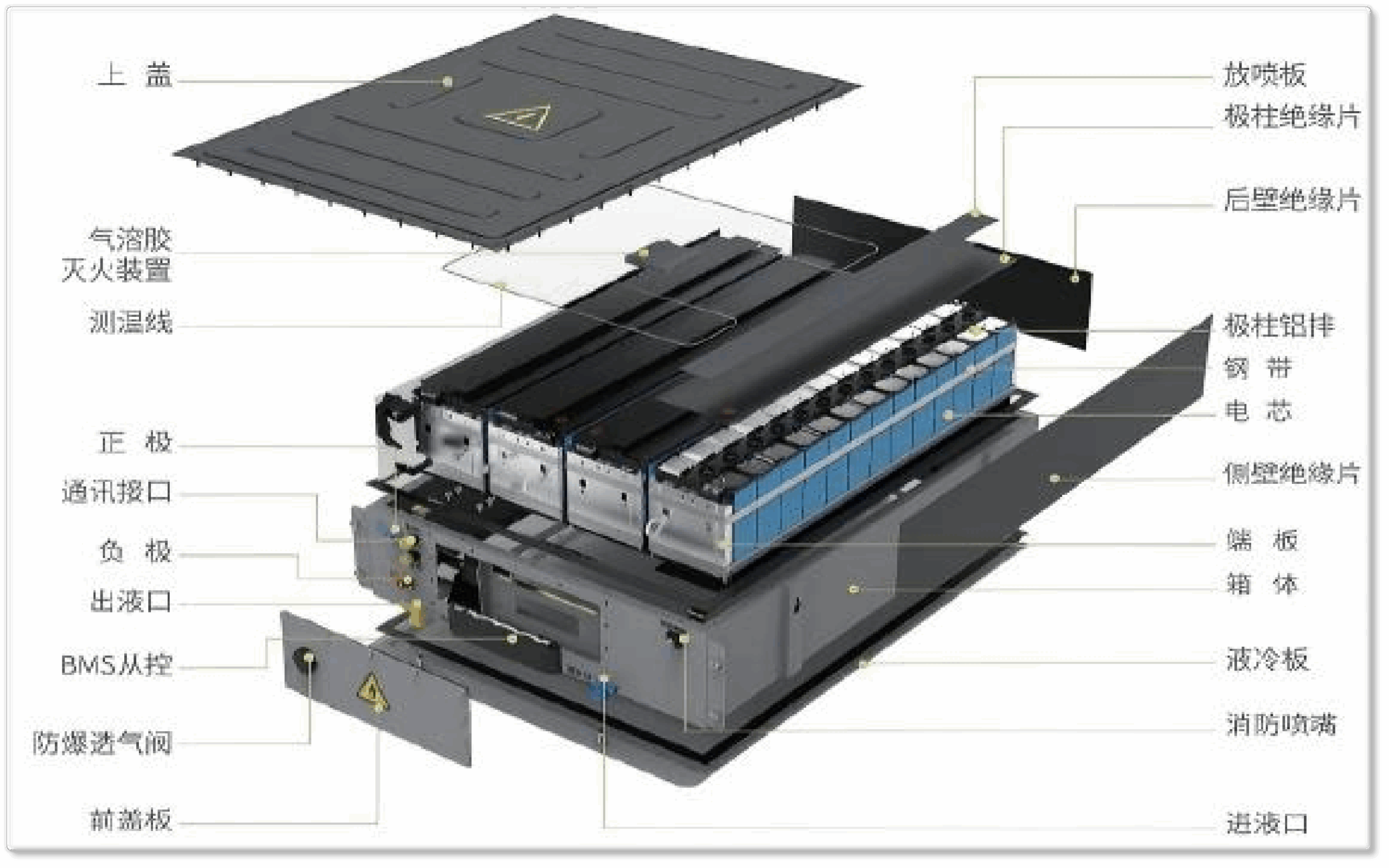

- Energy Storage Grade: Optimized for battery pack insulation, spacer strips, and hardware control cabinets.
- Excellent Die-Cutting: Superior dimensional stability and elongation for precise component manufacturing.
- Halogen-Free & Eco-Friendly: Compliant with strict environmental requirements (Low Br/Cl content).
★ Available in Transparent, Black Satin, and Opal Diffuser finishes.
| Grade / Type | Flame Retardant Rating | Standard Dimensions | Primary Application Fields | Service Life |
|---|---|---|---|---|
|
PC Black Sheet (One-Side Satin Finish) | UL94: V-0 / V-2 |
Width: ≤ 1300 mm Length: ≤ 6000 mm Thickness: 0.76 - 2.5 mm |
• Energy Storage Battery Insulation • AI Hardware Control Cabinets • Structural Insulation Components |
8 - 15 Years |
| PC Opal Diffuser Panel | UL94: V-2 |
Width: ≤ 1300 mm Length: ≤ 6000 mm Thickness: 2.0 - 8.0 mm |
• Charging Pile Panels & Faceplates • Firefighter Helmets & Visors • Industrial Light Diffusers | |
| PC Transparent Sheet | UL94: V-0 / V-2 |
Width: ≤ 2100 mm Length: ≤ 6000 mm Thickness: 2.5 - 12.0 mm |
• High-Impact Security Glazing • Electrical Equipment Shields • Flame Retardant Vision Panels |
* Dimensions and colors can be customized for large-scale industrial projects.
All products are certified under IATF 16949 quality management systems.
| Flame Retardancy UL94 | Standard Value (V-0) | |
|---|---|---|
| Afterflame Time | First Ignition (t1) |
≤ 10 Seconds No Flaming Droplets |
| Second Ignition (t2) |
≤ 10 Seconds No Flaming Droplets | |
