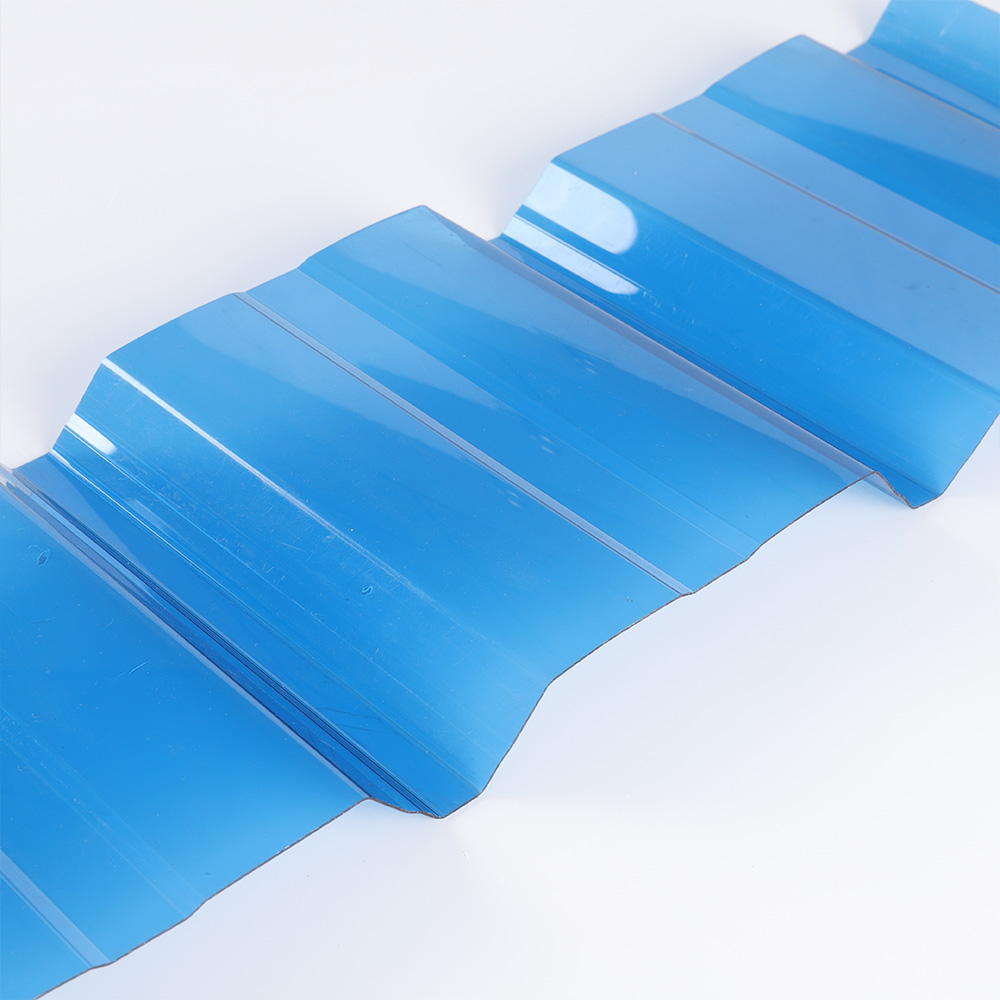

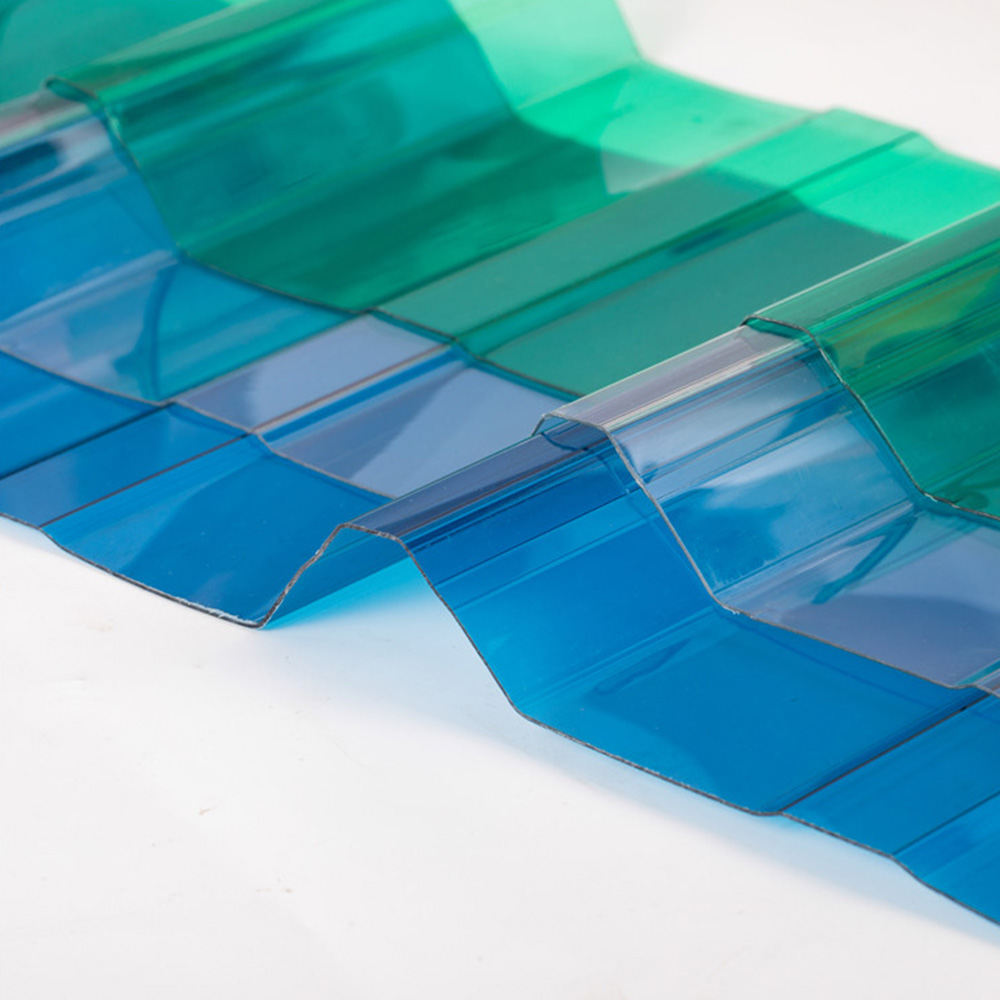

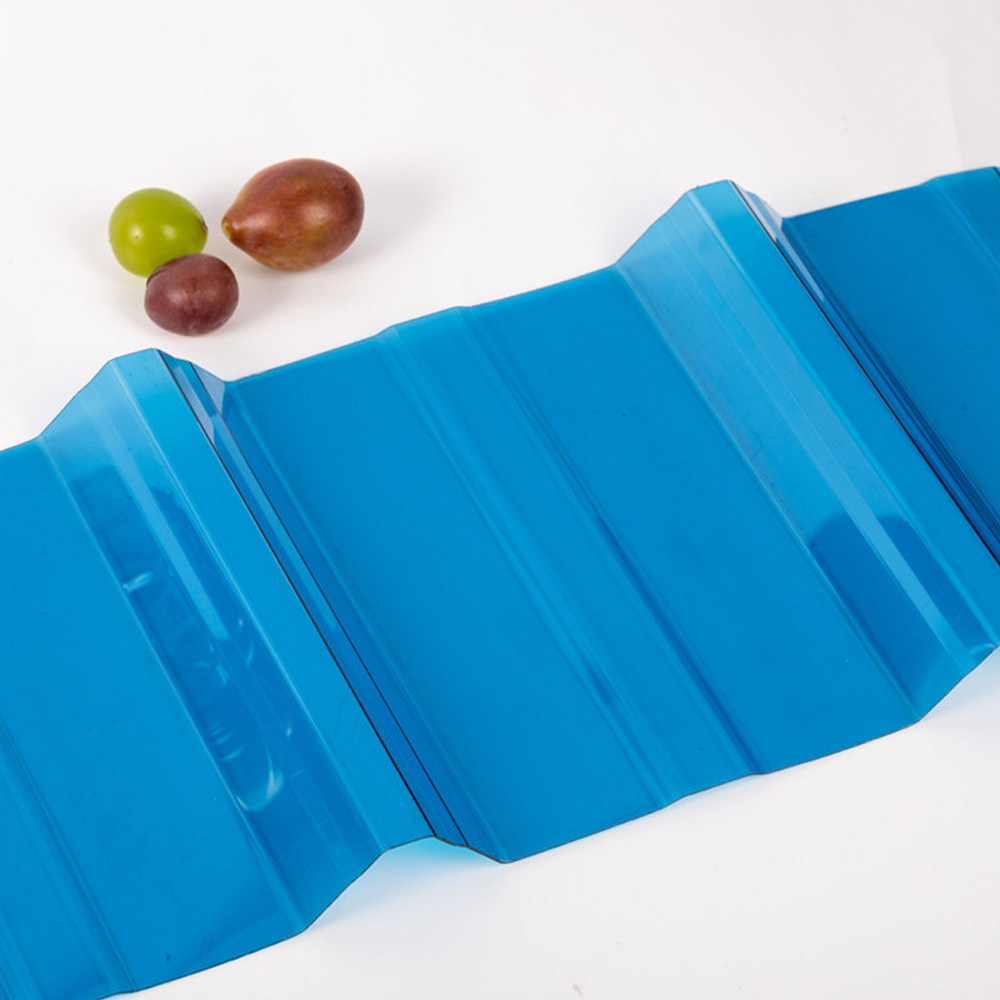

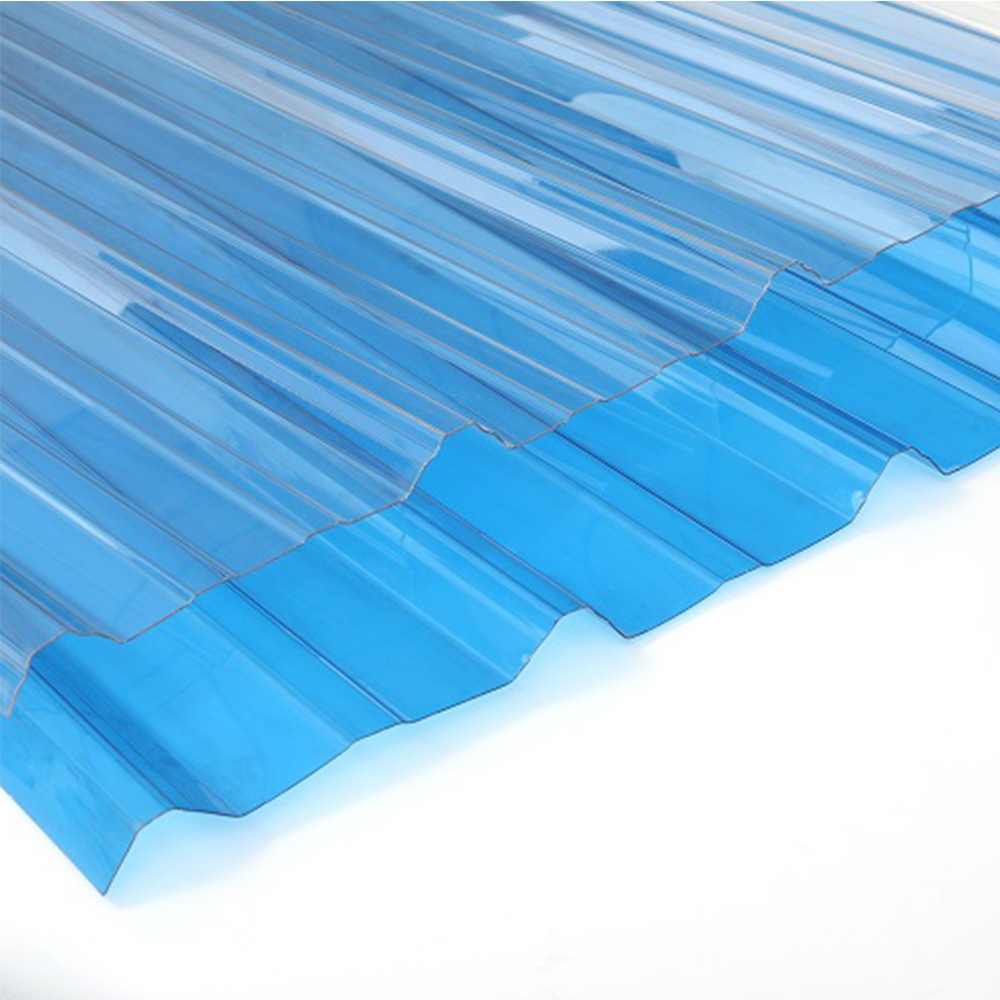

Corrugated PC Sheets
Heavy-duty corrugated polycarbonate panels for industrial skylights & DIY roofing. 250x stronger than glass, UV-protected, and hail-resistant. IATF 16949 certified quality.
Get a Factory Quote
Inquire Now
Description
High-Performance Industrial Skylights:

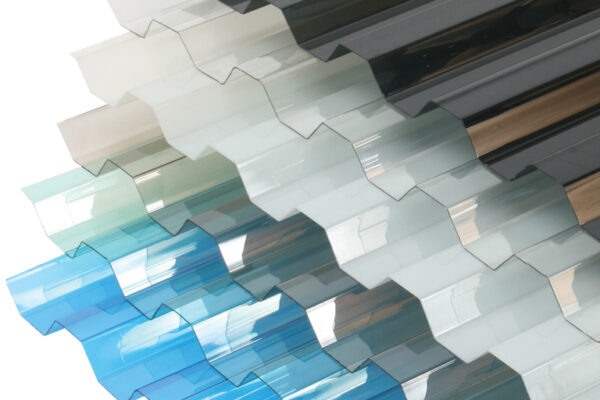

- Universal Profile Matching: Available in 20+ profiles (Greca, Round Wave, Trimdek) to overlap seamlessly with metal sheets.
- Hail Resistant: Virtually unbreakable under extreme weather. 250x the impact strength of glass.
- Maximum Light: Up to 90% light transmission for clear panels, reducing industrial lighting costs.
- Advanced UV Protection: Co-extruded layer prevents yellowing and brittleness for over 10 years.
★ Custom length up to 11.8m & Profile development available.
Why Choose Polycarbonate over Fiberglass (FRP)?
| Comparison Feature | Bakway Corrugated PC | Standard FRP (Fiberglass) |
|---|---|---|
| Impact Resistance | Virtually Unbreakable | Brittle (Cracks easily) |
| Light Quality | Crystal Clear (90% Trans.) | Hazy & Yellows quickly |
| Durability | Flexible (Won't splinter) | Rigid (Prone to spider cracks) |
| UV Protection | 50μm Co-extrusion (Fused) | Gel-coat (Peels over time) |
| Safety & Health | Safe, non-toxic handling | Releases itchy glass fibers |
| Warranty & Life | 10-15 Years | 3-5 Years |
* Testing based on extreme weather simulations including hail impact and accelerated UV exposure.
Technical Datasheet
| Parameter | Standard Value | Test Method |
|---|---|---|
| Thickness | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm | ISO 4593 |
| Common Profiles | Greca, Sine, Trapezoidal, Rome, Trimdek | Custom Available |
| Light Transmission | Clear (90%), Opal (50%), Bronze (35%) | ASTM D1003 |
| Service Temp. | -40°C to +120°C | — |
| Flammability | B1 / Class A / UL94 V-2 | GB 8624-2012 |
| UV Layer | 50 Micron Co-extrusion | Microscope test |
