Optical Grade Solutions

Polycarbonate
LED Light Diffuser Sheets

Achieve uniform glow and 0% hotspots. Our optical-grade PC panels combine high light transmission with UL94 V-0 fire safety for professional lighting projects.

90%
Light Trans.
UL94 V-0
Fire Safety
Custom
Cut-to-Size

Why Choose Our PC LED Diffuser Sheets?

🔆

Zero Hotspots

Eliminate pixelation for uniform illumination.

🛡️

UL94 V-0 Safety

Certified flame retardant for public projects.

🌡️

Heat Stability

Stable up to 120°C, outperforming Acrylic.

💎

High Trans.

Light transmission from 60% up to 90%.

Pro Tip: Polycarbonate diffusers are 250x more impact-resistant than glass, making them the safest choice for vandal-proof lighting.

Technical Specifications

Standard and customizable optical properties for professional LED lighting applications.

PropertiesTesting MethodValues & Data
Material-Optical Grade Polycarbonate (PC)
Light TransmissionASTM D100360% - 90% (Customizable)
Haze / Diffusion DegreeASTM D100398% - 99.5%
Fire RetardancyUL 94V-0 / V-2 / HB
Heat Deflection Temp.ASTM D648120°C - 135°C
Thickness RangeMicrometer0.5mm - 5.0mm
Impact StrengthISO 179/1eA850 J/m (Virtually Unbreakable)

Need a Detailed TDS?

Download the full Technical Data Sheet for complete optical and physical properties.

📥 Download Data Sheet (PDF)

Core Applications for LED Diffuser Sheets

Engineered for optical precision, our PC diffusers are the preferred choice for high-end lighting projects globally.

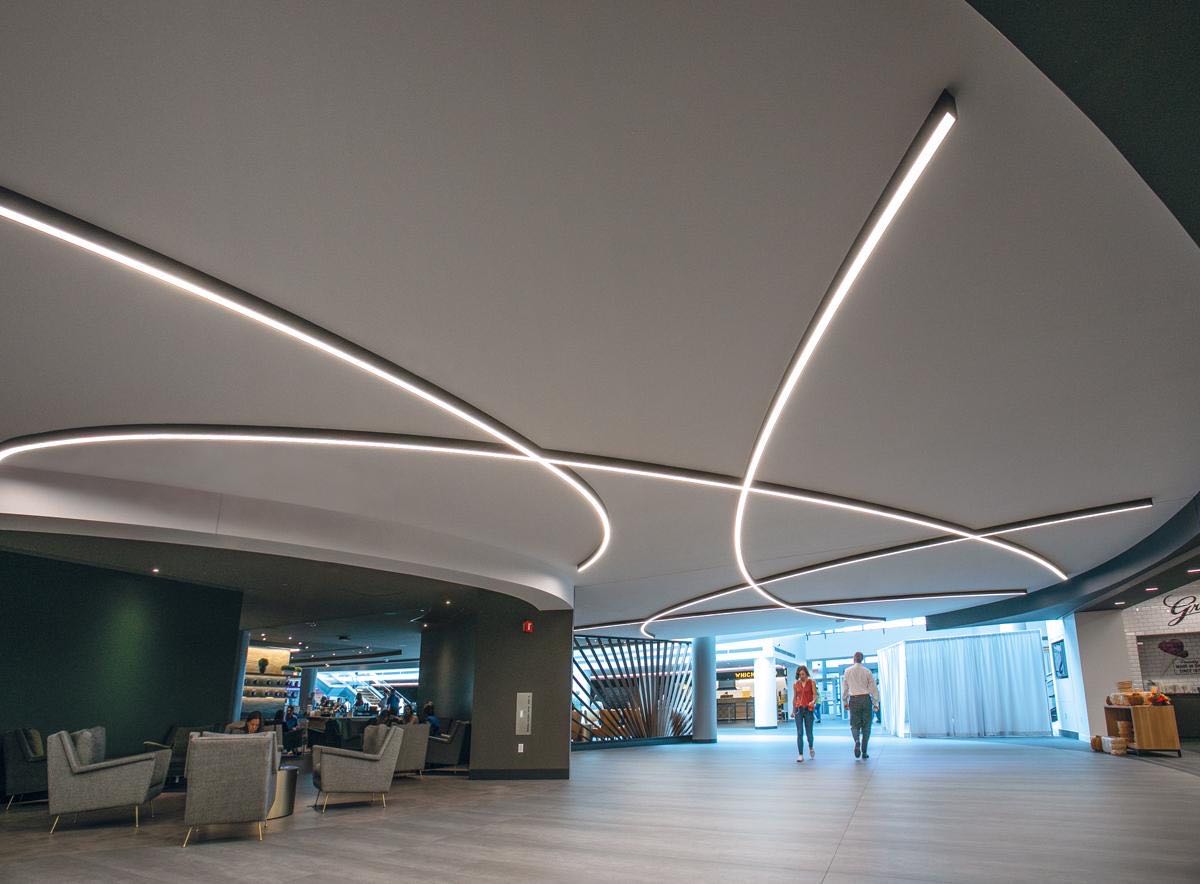

Commercial LED Linear Lighting
Interior

Commercial Linear Lighting

Seamlessly diffuse point-source LEDs in office troffers and slim fixtures for a glare-free environment.

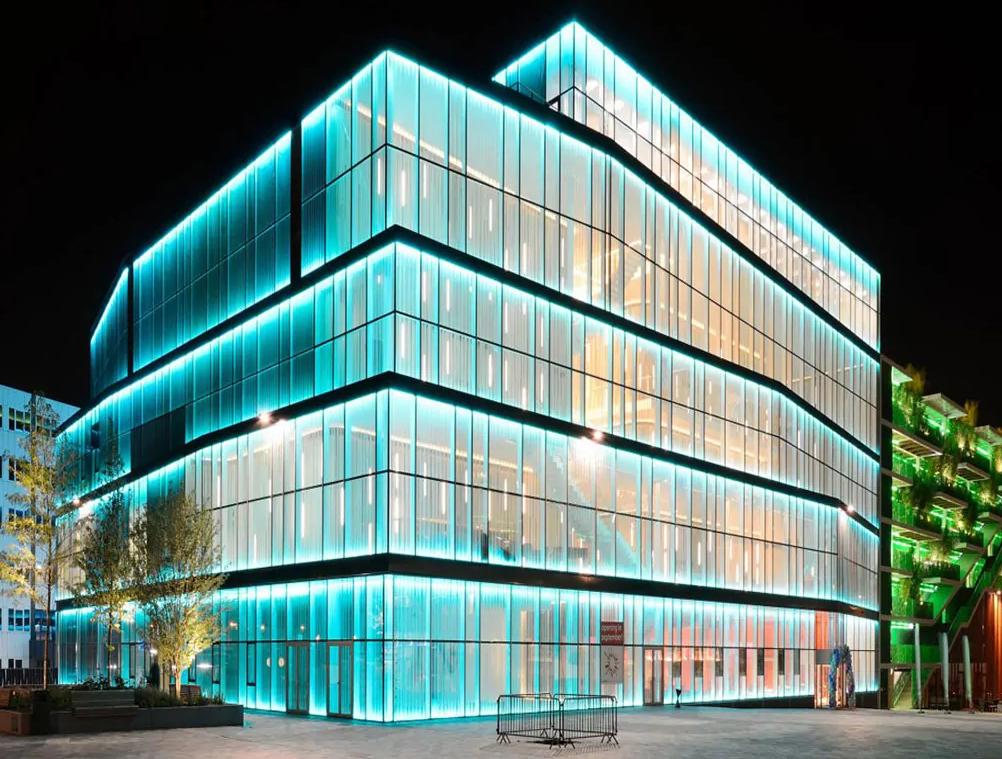

Architectural LED Facades
Architectural

Backlit Architectural Facades

UV-resistant panels for outdoor backlit walls, decorative columns, and public urban art.

LED Signage
Signage

High-Visibility LED Signage

Optimized for maximum brightness and color accuracy in retail light boxes and POP displays.

Ready to Light Up Your Project?

Get expert technical support and custom cut-to-size service for your LED diffuser sheets.

Request Free Samples

FAQ: LED Light Diffuser Solutions

Everything you need to know about selecting the right optical polycarbonate sheets.

Q: Is Polycarbonate better than Acrylic (PMMA) for LED diffusion?

A: Yes, for most industrial and commercial applications. While Acrylic has slightly higher clarity, Polycarbonate (PC) offers far superior heat resistance (up to 120°C) and is virtually unbreakable (250x stronger than glass). This makes PC the safer choice for high-power LED fixtures and public environments.

Q: How do I choose the right light transmission rate?

A: It depends on the distance between the LEDs and the diffuser. For slim profiles, a lower transmission (60-70%) is better to hide hotspots. For deep fixtures, higher transmission (80-90%) can be used to maximize brightness while maintaining a uniform "line of light."

Q: Do you provide custom cut-to-size and CNC services?

A: Absolutely. We provide professional CNC routing and laser cutting services. Whether you need circular discs for downlights or complex shapes for architectural fixtures, we can provide precision-cut pieces based on your CAD drawings.

Q: Are your LED diffuser sheets fire-rated?

A: Yes. Our optical grade polycarbonate is available with UL94 V-0 or V-2 fire ratings. This is a critical requirement for safety compliance in commercial buildings, airports, and industrial facilities.

Still have technical questions? Contact our engineering team for a detailed consultation.
